How to Choose the Right Hex Head Plug

Hex head plugsare essential components in various industrial applications, particularly in sealing threaded holes in mechanical systems, pipelines, and hydraulic systems. These plugs come in multiple styles, sizes, materials, and configurations to cater to different sealing needs.

In this guide, we’ll break down the types, materials, thread options, and sealing mechanisms of hex head plugs, helping you choose the right one for your specific requirements. We’ll also highlight FOKCA's high-quality hex head plugs, ensuring you make an informed purchasing decision.

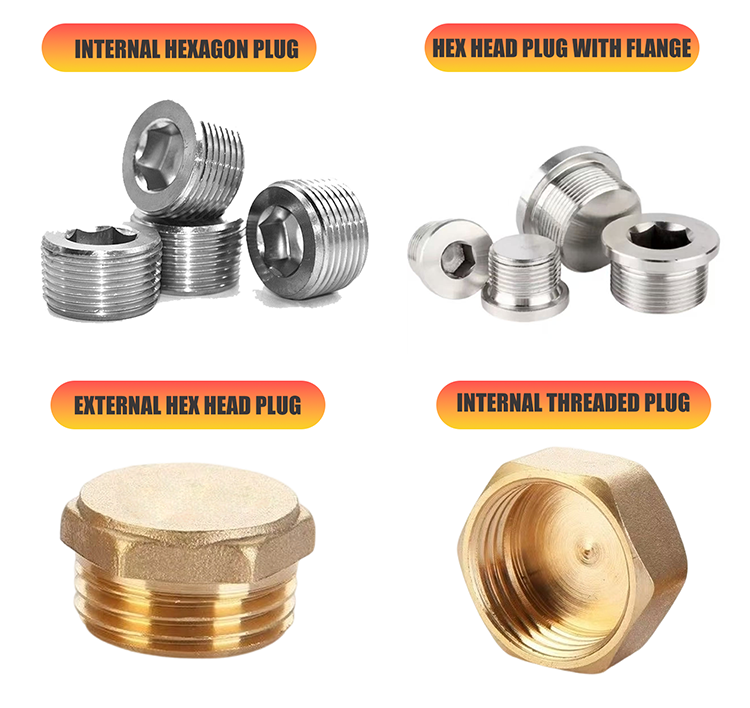

Understanding the Different Types of Hex Head Plugs

Hex head plugs are versatile and come in a variety of styles, each designed for different applications. The main types include:

    1.Internal Hexagon Plug:

        Also known as a hex socket plug, this type of plug features an internal hexagon for installation with an Allen wrench or hex key.It's commonly used in tight spaces where a regular wrench cannot fit.

    2.Hex Head Plug with Flange:

        This plug features a flange around the base, which allows for easier tightening with a wrench and creates a stronger seal due to the larger contact area. This style is ideal for higher pressure applications.

    3.External Hex Head Plug:

        An external hex head plug has an external hexagon shape for tightening with a standard wrench. It’s commonly used in accessible areas where space isn’t restricted.

    4.Internal Threaded Plug:

        These plugs are designed to fit into internally threaded holes. They come in different thread types, including M (metric), G (gas), PT (parallel thread), and NPT (national pipe thread).

    Choosing the correct type depends on your application requirements, access space, and the tools available for installation.

Material Selection: Brass, Steel, or Stainless Steel

Hex head plugs are available in several materials, each providing unique properties. The material you choose should align with the specific environment in which the plug will be used.

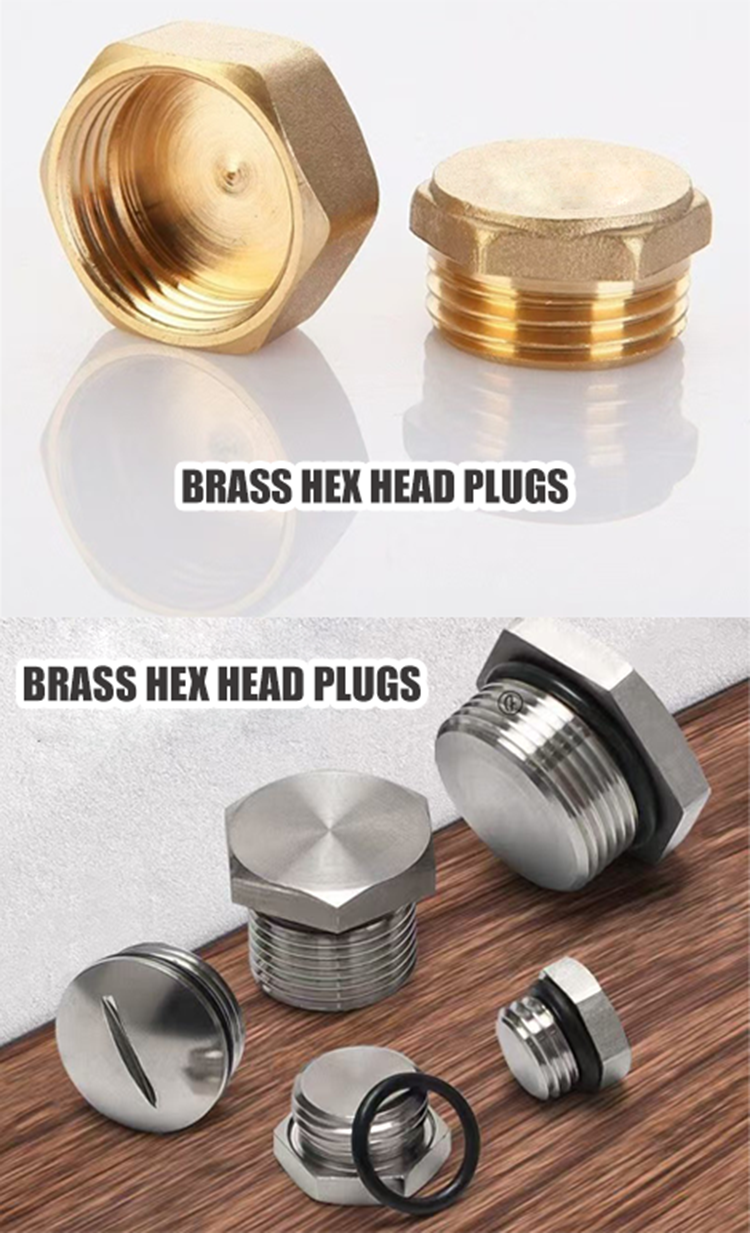

    1.Brass Hex Head Plugs: Brass is highly resistant to corrosion and provides excellent sealing properties, making it an ideal choice for systems involving water, oils, and gases. Brass hex head plugs are commonly used in plumbing and heating applications.

    2.Steel Hex Head Plugs: Steel, particularly carbon steel, is strong and durable, ideal for industrial applications that require high strength. Hex head steel plugs are commonly used in hydraulic systems, automotive applications, and other heavy-duty environments.

    3.Stainless Steel Hex Head Plugs: Stainless steel offers the highest corrosion resistance, making it perfect for harsh environments such as food processing, marine applications, or high-temperature systems. Stainless steel hex head plugs are durable, reliable, and can withstand exposure to chemicals, extreme temperatures, and corrosive elements.

When selecting a material, consider the conditions in which the hex head plug will be exposed to ensure long-term performance and reliability.

Choosing the Right Thread Type

Hex head plugs come in various thread options to suit different connection standards. The most common thread types include:

    1.M Thread (Metric Thread): Often used in European and international applications, the M thread is ideal for sealing in applications with standard metric holes.

    2.G Thread (Gas Thread): G threads, commonly used for sealing in gas systems, are compatible with both gas and liquid systems, providing a secure seal.

    3.PT Thread (Parallel Thread): The PT thread is a type of parallel thread commonly used in pneumatic and hydraulic systems, where the plug is used to block or seal off a hole.

    4.NPT Thread (National Pipe Thread): The NPT thread is a tapered thread used primarily in the U.S. and North American markets. It offers a tighter seal due to its tapered design, making it ideal for high-pressure systems.

Choosing the right thread ensures a proper seal, reducing the risk of leaks and improving system efficiency.

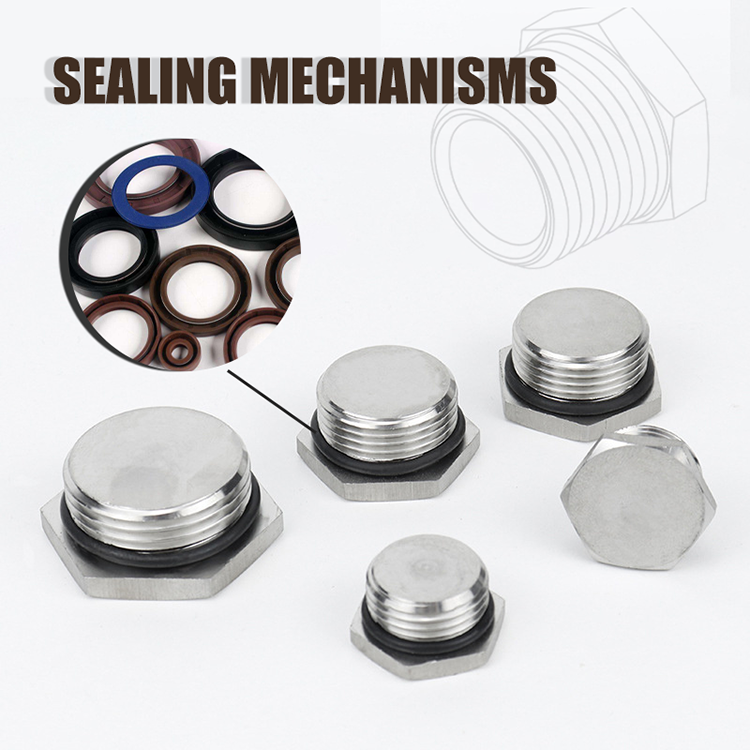

Sealing Mechanisms: O-Ring vs. ED Sealing

Some hex head plugs come with built-in sealing mechanisms for enhanced performance, especially in applications where pressure and fluid dynamics are critical.

    ◆O-Ring Hex Head Plugs: These plugs come with an O-ring that helps create a tighter seal around the plug, preventing leaks and ensuring system integrity. O-ring plugs are commonly used in applications where a high level of sealing is required but where the system pressure is relatively low to medium.

    ◆ED Sealing Hex Head Plugs: The ED (Edge) Sealing Plug is designed with an edge around the flange, providing an extra layer of sealing. These plugs are ideal for high-pressure systems or applications requiring superior leak resistance, such as in the oil and gas industry.

The choice between O-ring and ED sealing plugs depends on the specific sealing requirements, system pressure, and potential exposure to harsh environmental conditions.

Hex Head Plug Sizes: Finding the Right Fit

Hex head plugs  come in various sizes to match the hole diameters in your system. Choosing the correct size is essential for ensuring a tight seal and proper function. Sizes are typically specified by the diameter of the hole they will seal.

    ◆Standard Sizes: Hex head plugs are available in both metric and imperial sizes, ensuring compatibility with most thread types.

    ◆Custom Sizes: If your application requires non-standard hole sizes, many manufacturers, including FOKCA, offer custom-sized hex head plugs.

When selecting a plug size, ensure the diameter and thread pitch match the hole specifications in your system. Fitting the right size plug ensures better performance and a more durable seal.

Why Choose FOKCA Hex Head Plugs?

FOKCA offers a wide range of high-quality hex head plugs  in various materials, sizes, and thread options to meet the needs of diverse industries, including oil and gas, hydraulic systems, and fluid transport. Key benefits of choosing FOKCA include:

    ◆Wide Range of Materials: Brass, steel, and stainless steel options to suit your environmental and operational needs.

    ◆Customizable Options: FOKCA offers custom thread types, sizes, and sealing configurations for specialized applications.

    ◆High-Quality Sealing: Our O-ring and ED sealing plugs provide enhanced leak protection for demanding environments.

    ◆Durability and Performance: All FOKCA hex head plugs are built to last, offering superior corrosion resistance and sealing properties.

With FOKCA's reliable hex head plugs, you can ensure your systems remain leak-free, durable, and efficient.

Selecting the right hex head plug is crucial for ensuring proper sealing and long-term performance in various industrial applications. By considering the type, material, thread type, and sealing mechanism, you can choose a hex head plug that meets your specific requirements. With FOKCA's wide range of high-quality hex head plugs, you can trust us to provide the best solutions for your sealing needs.

（FK9026）
