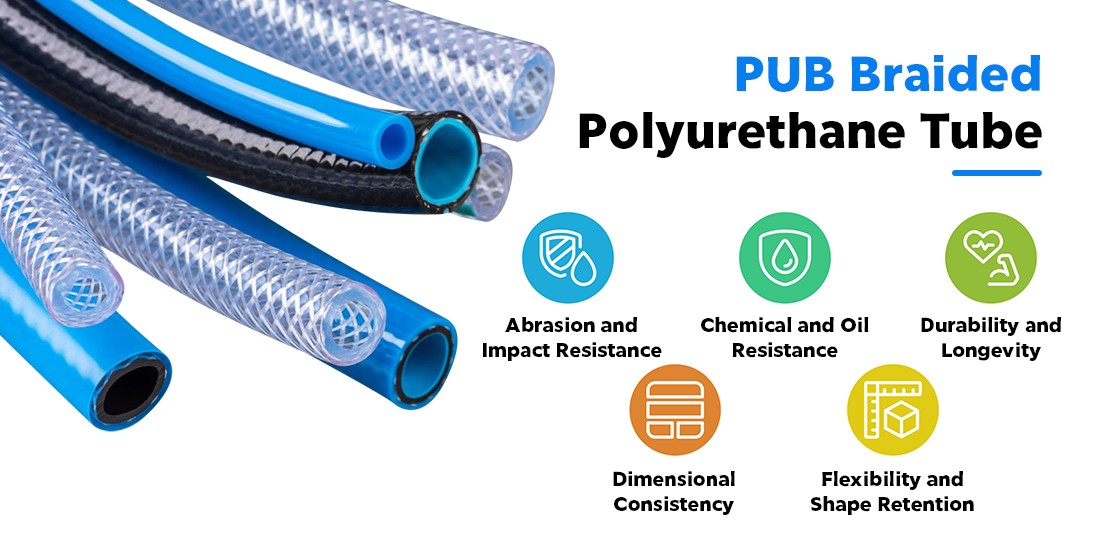

PUB Braided Polyurethane tube combines the durability and flexibility of polyurethane with the added strength of a braided reinforcement. This design provides excellent resistance to pressure, abrasion, and impact, making it ideal for use in demanding applications such as pneumatic systems, fluid transfer, and robotics. The braided structure enhances the tube’s ability to withstand higher pressures while maintaining its flexibility and lightweight properties.
PUB Braided Polyurethane tube also offers good chemical resistance and is suitable for use in environments exposed to oils, chemicals, and UV light, ensuring long-lasting performance in both industrial and commercial applications.
In modern industrial automation and fluid transfer systems, the performance requirements for hose materials are becoming increasingly demanding. PUB Braided Polyurethane Tube, also known as PUB tube, is an advanced hose that combines the high strength and abrasion resistance of polyurethane elastomer with a reinforced braided structure. It is widely used in various industrial applications such as high-pressure pneumatic systems, hydraulic control, machinery manufacturing, packaging, and automotive assembly.
PUB tube features high mechanical strength, excellent oil resistance, and outstanding wear resistance, making it especially suitable for pneumatic systems that require flexibility and the ability to withstand high pressure.
| Material | Polyurethane braided with Textile |
| Applicable medium | Air, Water, Vacuum |
| Embient and fluid temperature | -20℃~+80℃ |
| Hardness Shore A | 85A/90A ASTM D-2240 |
| Tensile strength(kg/cm2) | 500 ASTM D-638 |
| Ultimate elongation(%) | 590~690 ASTM D-638 |
| Taber abrasion(mg) | 30~40 ASTM D-1044 |
| Tear strength(kg/cm2) | 115 ASTM D-732 |
Features
◆ Resistant to abrasion and impact for reliable performance.
◆ Offers resistance to oil and many chemicals, without causing erosion.
◆ Long-lasting and durable for extended use.
◆ Precise size and uniform wall thickness for consistency.
◆ Good flexibility and ability to return to shape after bending.
